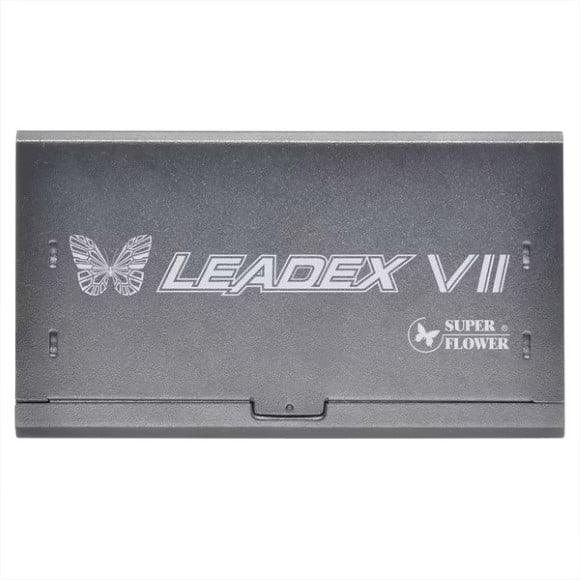

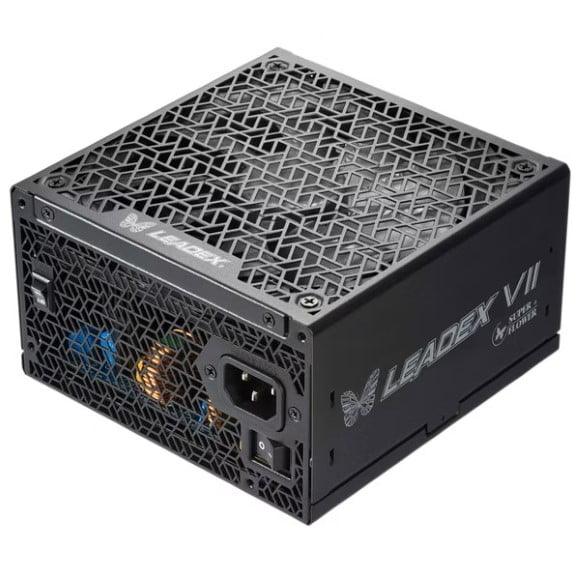

Super Flower LEADEX VII Platinum PRO 1000W PSU

The Super Flower LEADEX VII Platinum PRO 1000W is a premium power supply unit (PSU) designed to meet the demands of high-performance gaming rigs and professional workstation builds. With its advanced design, high efficiency, and stable power delivery, it’s a reliable choice for users who want top-tier performance and long-term durability.

Efficiency & Performance

This PSU boasts an 80 PLUS Platinum certification, delivering efficiency ratings of approximately 90% at 20% load, 92% at 50% load, and 89% at full load. :contentReference[oaicite:0]{index=0}

It’s also certified by Cybenetics, ensuring strong performance under real-world conditions. :contentReference[oaicite:1]{index=1}

Advanced Power Design

Built according to the Intel ATX 3.1 standard (EPS v2.92), this PSU supports up to 200% transient power excursions, making it future-ready and especially suitable for high-end GPUs that demand sudden spikes in power. :contentReference[oaicite:2]{index=2}

It features patented dual 9-pin Super Connectors on the modular panel, connected to a 12+4-pin plug for modern graphics cards. This design helps minimize high-angle bending stress, improving both safety and cable longevity. :contentReference[oaicite:3]{index=3}

Cooling & Acoustics

The LEADEX VII Platinum PRO is cooled via a 140 mm fluid-dynamic bearing (FDB) fan with a nine-blade design. This ensures strong airflow while keeping noise levels low. The fan supports an ECO mode, which allows the PSU to run silently at lower loads. :contentReference[oaicite:4]{index=4}

Build Quality & Components

The PSU uses 100% Japanese 105°C capacitors for both the main board and the modular back panel, ensuring longevity, stability, and high reliability. :contentReference[oaicite:5]{index=5}

Its fully modular design leverages flexible ribbon cables, making cable management easier and improving airflow within your PC case. :contentReference[oaicite:6]{index=6}

Safety & Protection

To safeguard your system, the PSU includes a comprehensive protection suite:

• Over Voltage Protection (OVP)
• Over Current Protection (OCP)
• Over Power Protection (OPP)
• Short Circuit Protection (SCP)
• Under Voltage Protection (UVP)
• Over Temperature Protection (OTP)
• No Load Operation (NLO)
• Surge & Inrush Protection (SIP)

It is certified under multiple global safety standards, such as TÜV, CE, FCC, UKCA, RoHS, and more. :contentReference[oaicite:7]{index=7}

Connectivity & Cabling

The PSU offers a well-thought-out cabling layout to support modern builds:

• 1 × 20+4-pin motherboard
• 2 × 8-pin (4+4) CPU connectors
• 4 × PCI-E 6+2-pin connectors
• 1 × PCI-E 12+4-pin (for modern GPU power)
• 3 × SATA connectors
• 1 × Molex connector

With this configuration, it supports both legacy and next-generation hardware with ease. :contentReference[oaicite:8]{index=8}

Reliability & Warranty

Super Flower backs this PSU with a long-term warranty (typically 10 years according to some sellers). :contentReference[oaicite:9]{index=9}

It’s built for high-demand systems and has been tested extensively for durability, including more than 2,000 power on/off cycles. :contentReference[oaicite:10]{index=10}

Ideal Use Cases

This PSU is perfect for:

• High-end gaming PCs with RTX-class graphics cards
• Workstations that require stable power under dynamic loads
• Future-proof builds leveraging ATX 3.0 / PCIe 5.0
• Silent or low-noise systems due to ECO fan mode

In summary, the Super Flower LEADEX VII Platinum PRO 1000W is a high-quality, efficient, and future-ready PSU that delivers stable performance, excellent protection, and flexible cabling. It’s an outstanding choice for builders who demand reliability and headroom for demanding hardware.
